SPECIFICATIONS

Barcode: No

Certification: CE

Choice: yes

Controller Mode: MODE2

Design: Dirt Bike

Features: Remote control

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No battery

Material: Metal,Plastic

Model Number: KM1500

Package Includes: Original Box,Operating Instructions

Recommend Age: 14+y

Remote Control: Yes

Scale: 1:8

State of Assembly: Ready-to-Go

Type: Car

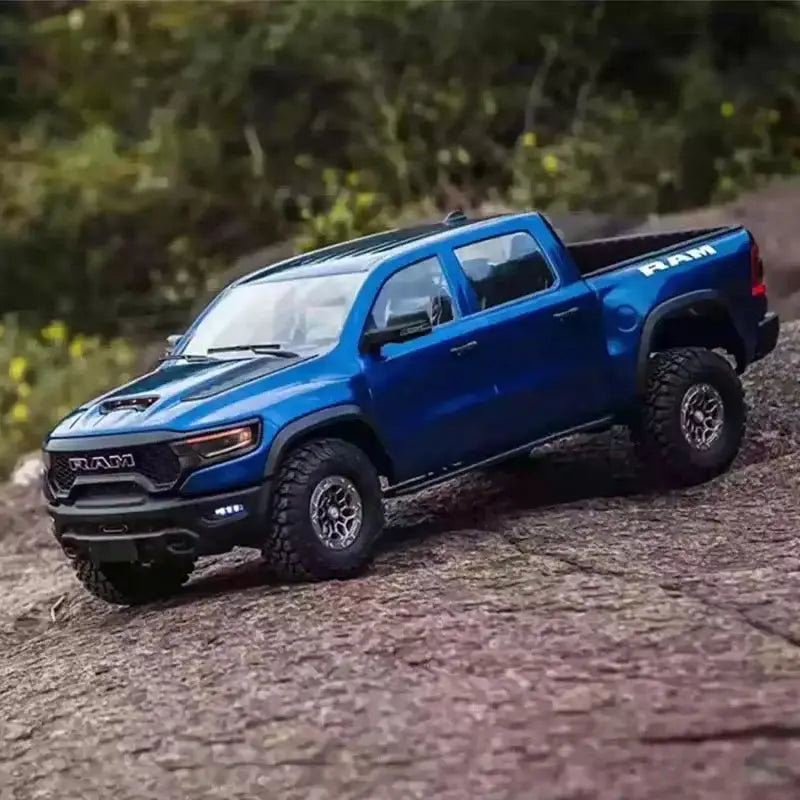

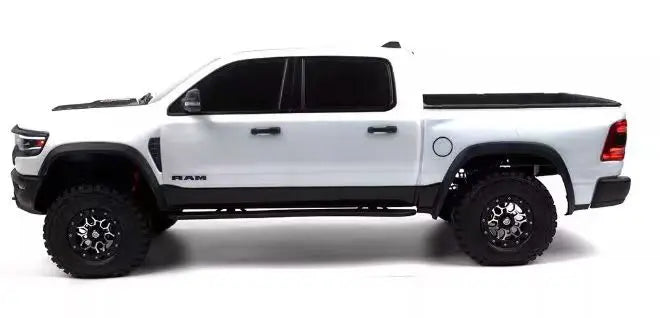

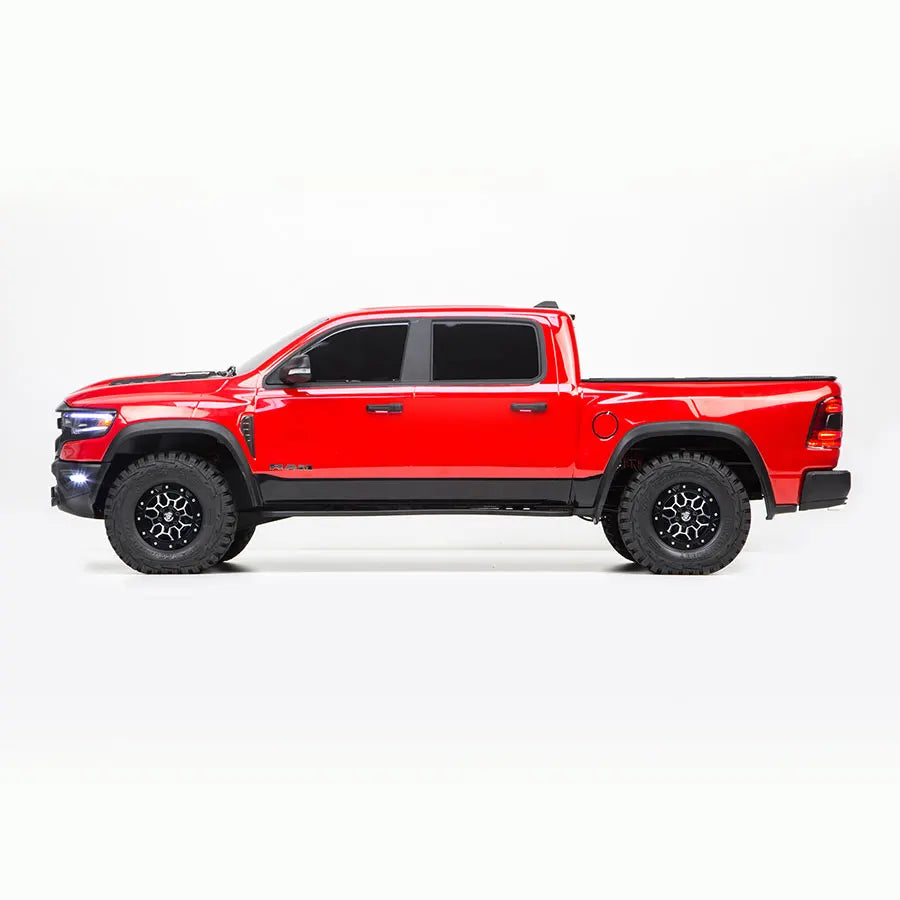

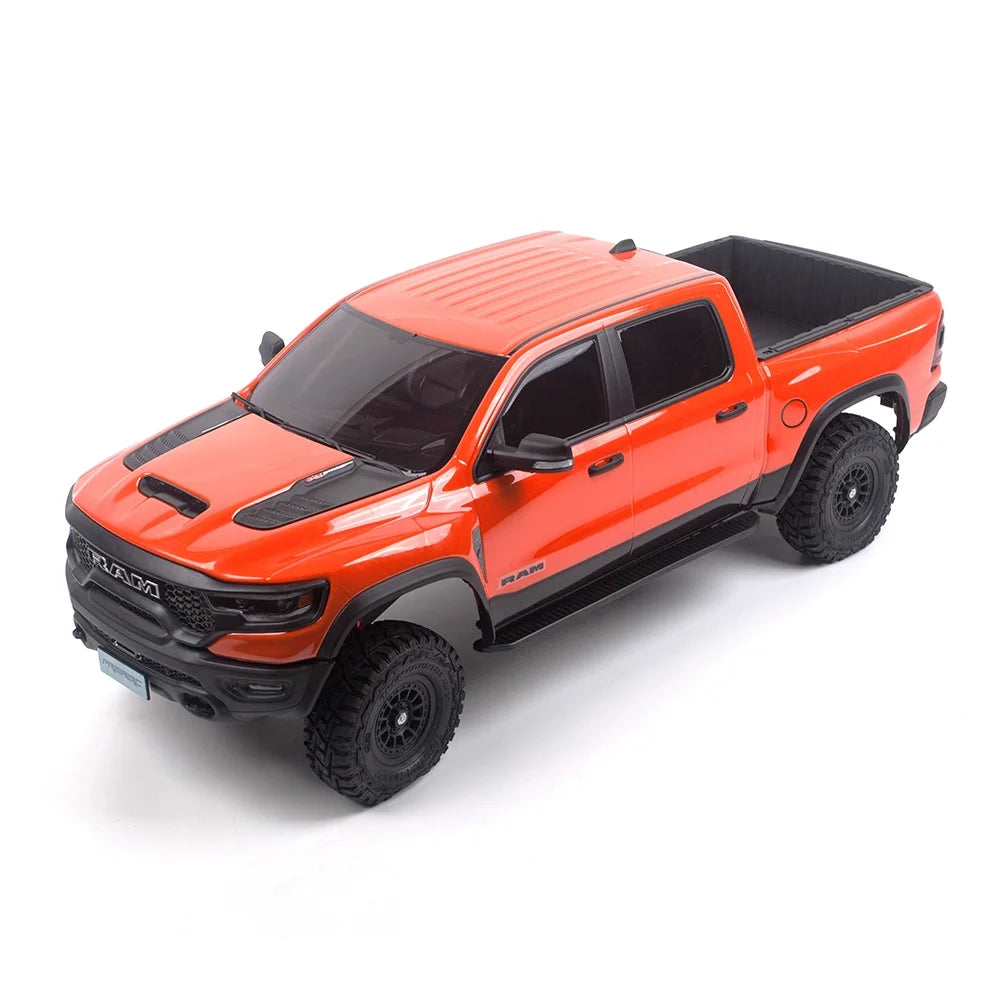

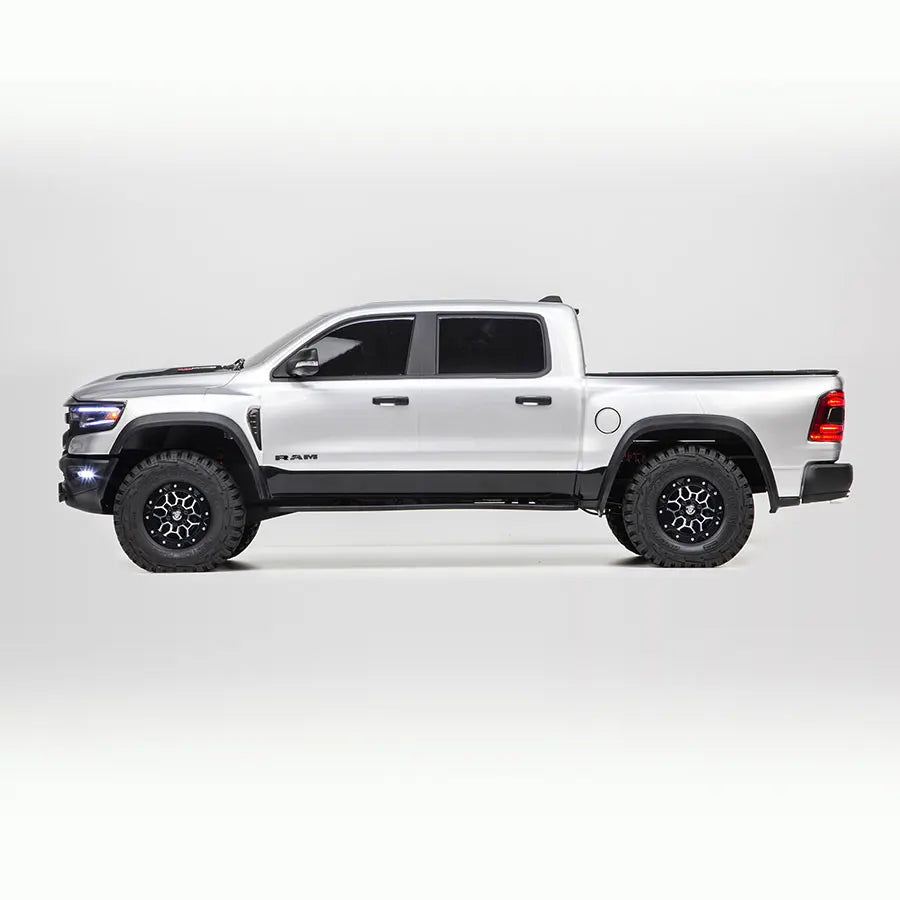

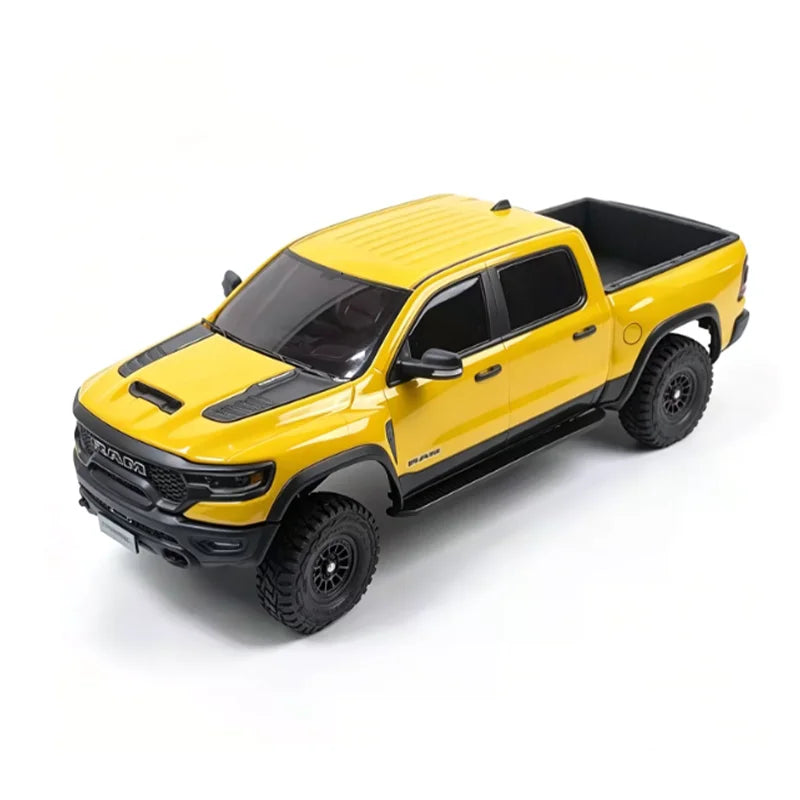

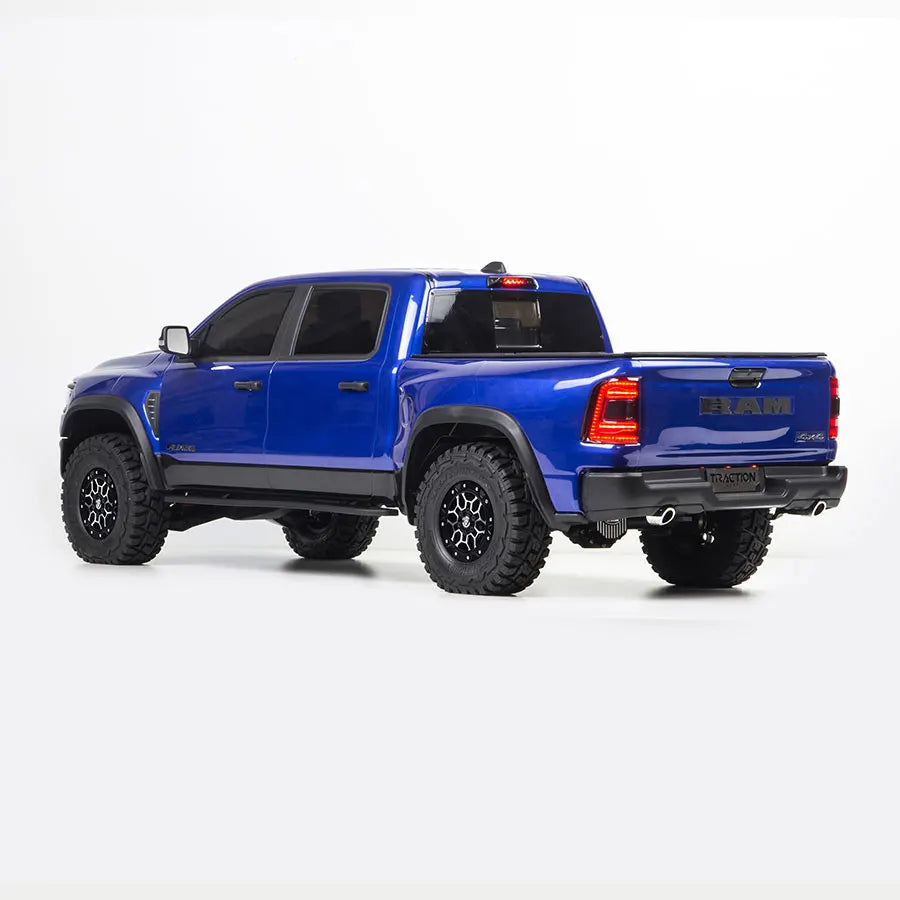

Model name: Dodge RAM1 500
Proportion: 1:8
Type: front independent rear straight axle pickup truck
Battery: support 2-4S lithium battery.
Battery size: maximum support 1 50mmx46mmx40mm size electricity.
Length, width and height: 743* 323*262mm(840*360* 360mm)

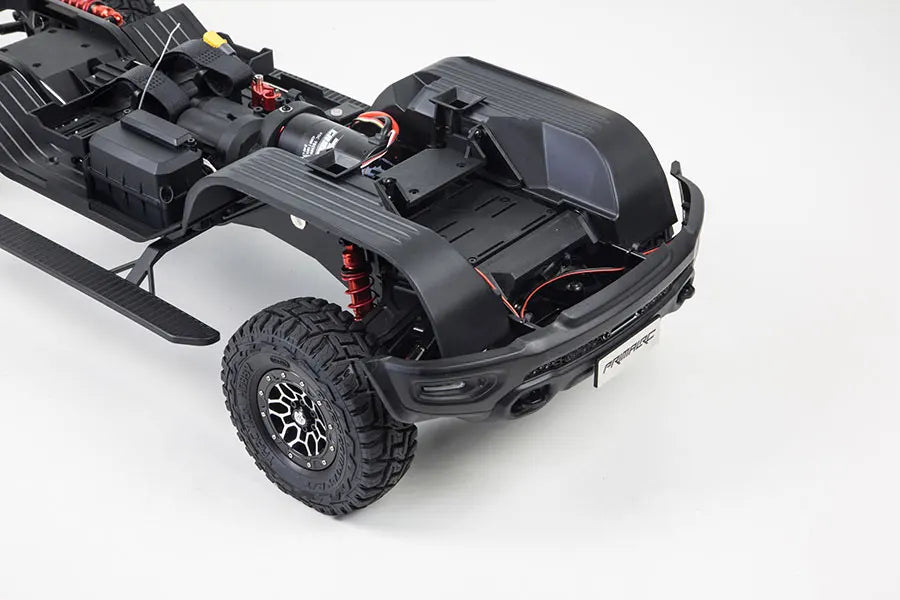

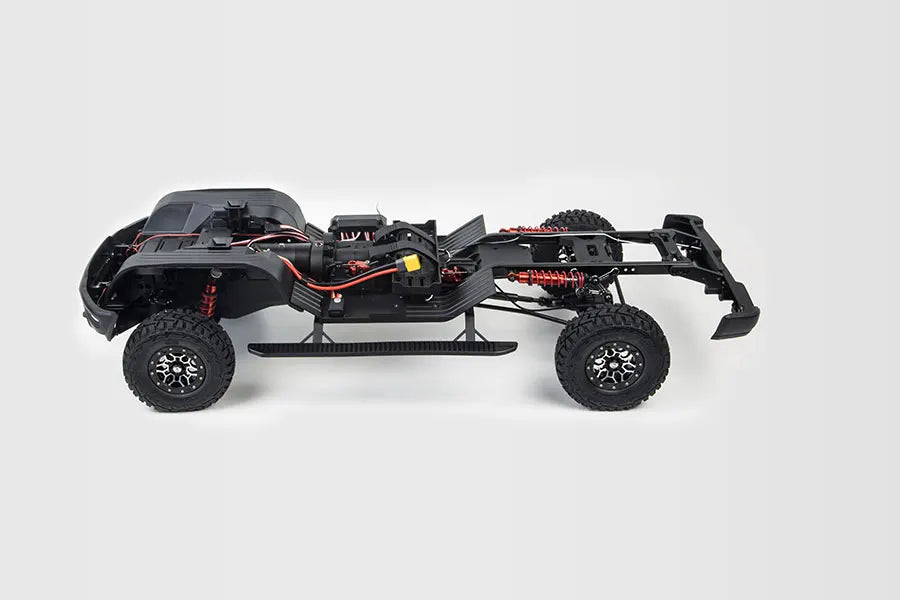

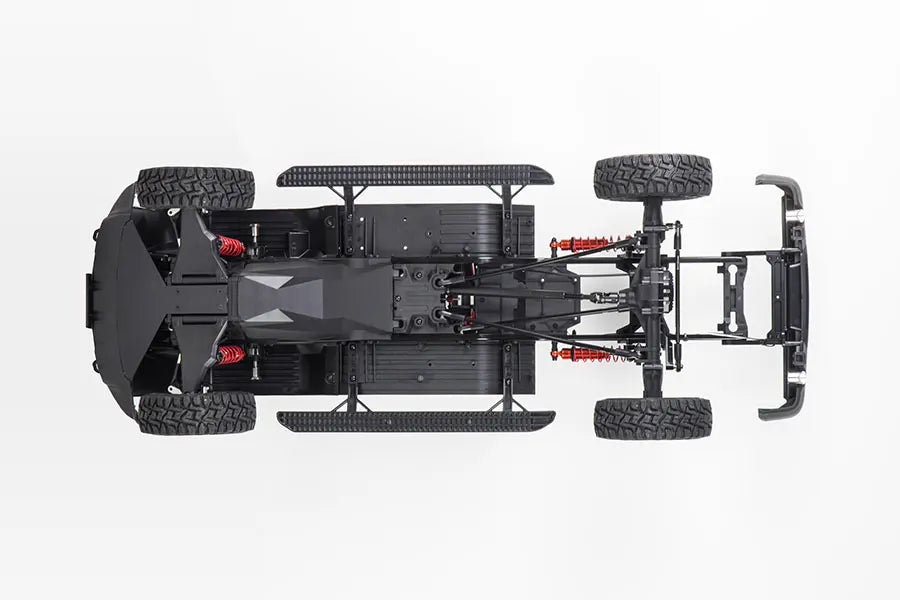

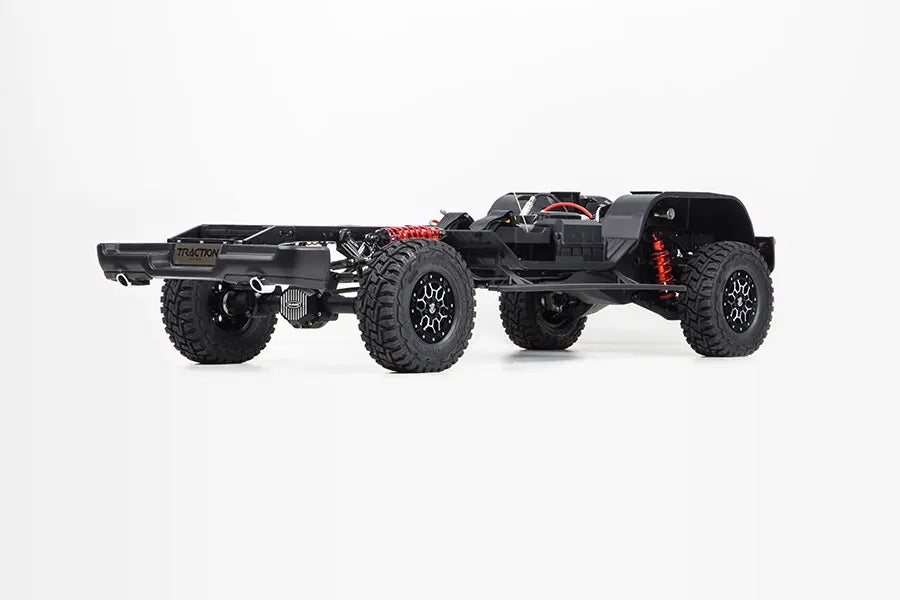

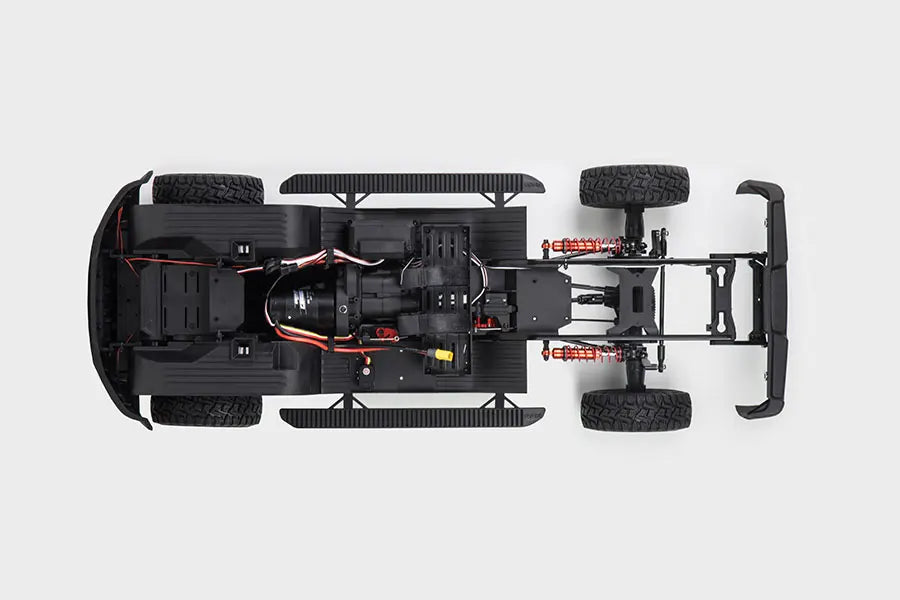

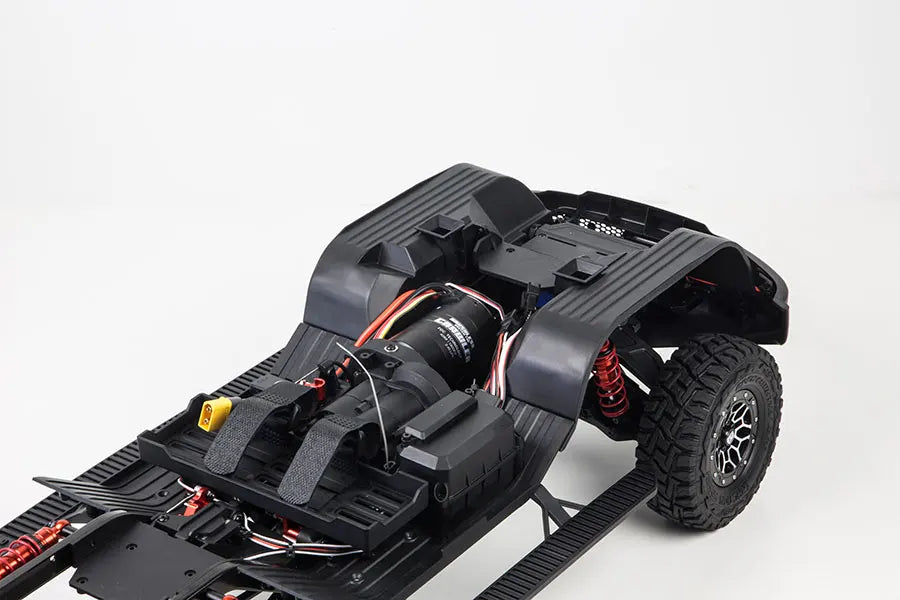

Body structure: front independent rear straight axle pickup truck
Wheelbase: 463mm
Track: 222mm
Minimum ground clearance: 39mm
Approach angle: 32°
Passing angle: 32°
Departure angle: 26°
Vehicle mass (kg): 10.6kg
Supporting motor: the diameter of the motor shall not exceed 46mm and the length shall not exceed 75 mm.
Number of teeth of motor: 14T as standard, with adjustable backlash, supporting 12-20T.
Driving mode: part-time 4wd (front drive, rear drive, four-wheel drive)
Suspension type: front independent rear straight bridge suspension, steel tie rod.
Transmission system: all-metal gear, 7mm transmission shaft (all-metal)
Front shock absorption type: 81mm shock absorption, all-metal twisted teeth shock absorption.
Rear shock absorber type: 93mm shock absorber, all-metal twisted teeth horizontal shock absorber.
Transmission shaft: all-metal transmission shaft
Axle: front independent rear straight axle (supporting differential lock)
Nylon bridge+CNC bridge cover
Body simulation: folding rearview mirror, simulation light group, wiper, door handle, rear bucket, simulation interior, etc.
Hub specification: 2.2, nylon hub
Tyre: Outer diameter of open field tyre is 115, and width is 42
Remote control:
brush: Dumbo DDF- 350, 10-channel LCD remote control
Brushless: FS-G7P+ 10 channel receiver with gyroscope
Electric adjustable motor:
brush: Haoying 880 (BEC7.4V), customized high-voltage splash-proof water adjustable, 775 motor.
Brushless: Haoying Fusion 8IGHT RTR (1 800KV)
Steering steering gear:
brush: TH1435HV high-voltage digital steering gear.
Brushless: TH1333/6V/ 33kg digital hollow cup steering gear.
Functional steering gear: TH1036HV high-voltage digital steering gear.

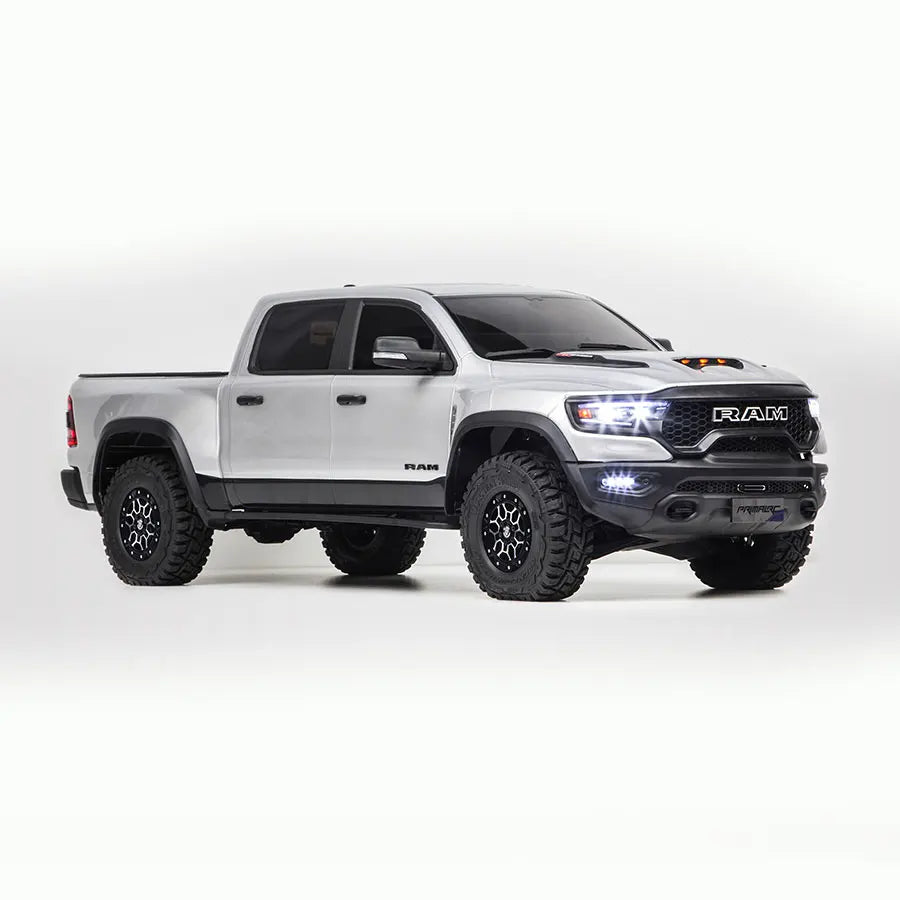

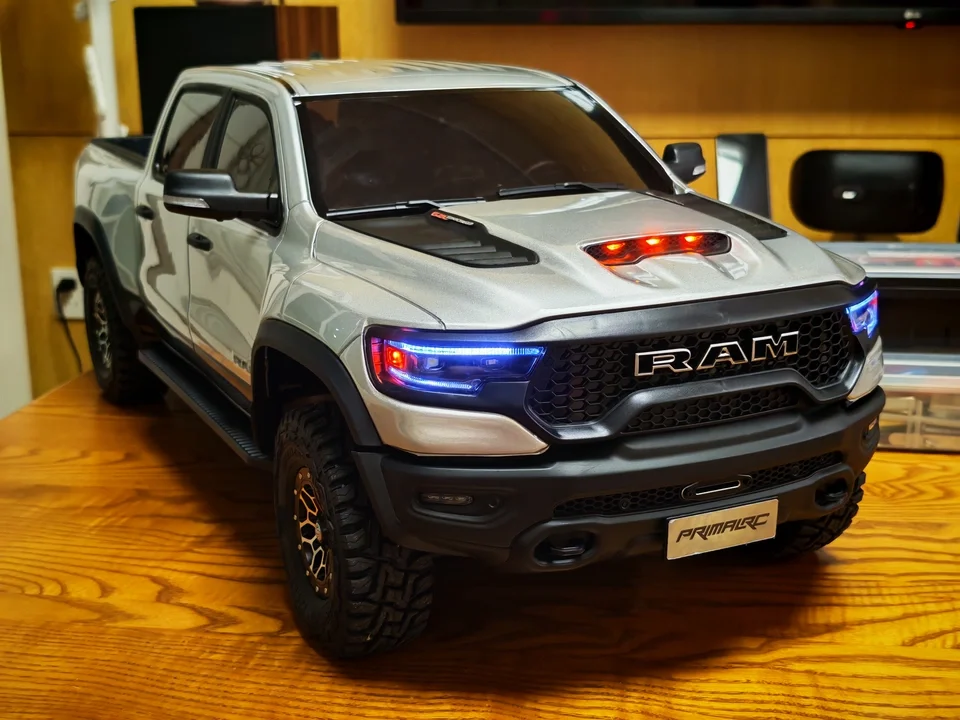

Lamp group: simulation lamp group, SMD lamp group +LED lamp group (combination)
